Custom Round Aluminum PCB LED Boards for Superior Heat Dissipation and Performance

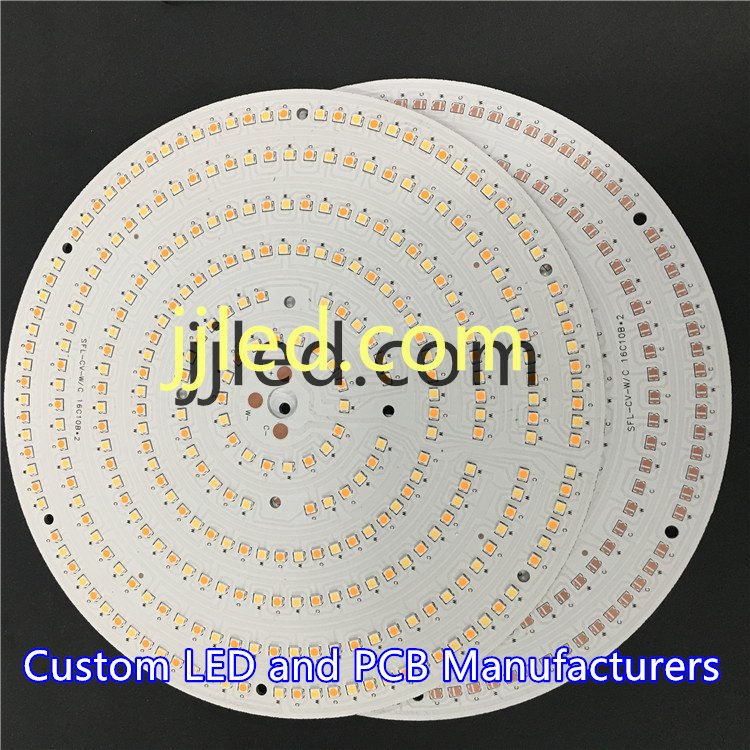

What is a Round Aluminum PCB for LEDs?

A round aluminum PCB for LEDs is a specially designed metal core printed circuit board (MCPCB) that features an aluminum base, a dielectric insulating layer, and a copper circuit layer on top. This unique structure allows efficient heat transfer away from high-power LEDs, keeping them cool and performing optimally. Unlike standard rectangular PCBs, round aluminum LED PCBs are shaped to fit circular lighting fixtures, offering better space utilization and even heat distribution in applications like downlights and spotlights.

The core of these PCBs is the aluminum base, chosen for its excellent thermal conductivity, which helps prevent hotspots and extends the LED’s lifespan. Above it lies the dielectric layer—a thin but crucial insulating material that also aids heat flow—and the copper circuit layer which forms the electrical pathways for LED connections.

Common types of round aluminum PCBs include single-layer boards for simpler LED arrays, COB-integrated panels where chip-on-board LEDs are directly mounted on the aluminum substrate for enhanced performance, and high-power modules designed for demanding lighting scenarios. Each type addresses specific needs, from compact residential bulbs to powerful industrial lighting, making round aluminum PCB LED solutions versatile and essential for modern LED technology.

Round Aluminum PCB vs. FR4 for LED Lighting

When it comes to LED lighting, choosing the right PCB material is crucial. Round aluminum PCBs stand out because of their excellent thermal conductivity—up to 200 W/mK—compared to FR4 boards, which only offer around 0.3 W/mK. This huge difference means aluminum bases can dissipate heat much faster, preventing hotspots that often reduce LED performance and lifespan.

Better heat management with aluminum PCBs leads to longer-lasting LEDs and brighter, more consistent light output. In contrast, FR4 boards tend to trap heat, making them less suitable for high-power LED applications. You’ll often see FR4 boards fail in setups with intense or sustained heat, causing reduced reliability and dimmer lighting.

So, when should you pick aluminum over FR4? Aluminum PCBs are the clear choice for high-power LEDs, such as in industrial lighting or automotive headlights. For low-power, low-heat designs like indicator lights, FR4 might be acceptable but is still less efficient.

For those looking for reliable, high-performance LED boards, our custom round aluminum PCB LED solutions offer the ideal balance of thermal management and durability. Check out our detailed insights on custom high-power aluminum LED PCBs for more on how aluminum outperforms FR4 in demanding LED applications.

Key Benefits of Using Round Aluminum PCBs for LEDs

Using round aluminum PCB LEDs brings clear advantages in LED lighting performance and design. Here’s why many choose them over traditional boards:

Choosing custom round aluminum PCB LEDs also supports innovative, compact lighting designs while ensuring excellent thermal management—essential for high-power or demanding LED projects.

For more on designing efficient LED circuits, check out our insights on LED circuit board design.

Technical Specifications to Consider for Round Aluminum PCB LED

When choosing a round aluminum PCB LED, several technical specs impact performance and compatibility. Here’s a quick guide:

These specifications ensure your metal core PCB LED board can handle high power and provide efficient thermal management. For specialized needs, working with a custom round LED PCB supplier helps optimize these specs precisely to your project.

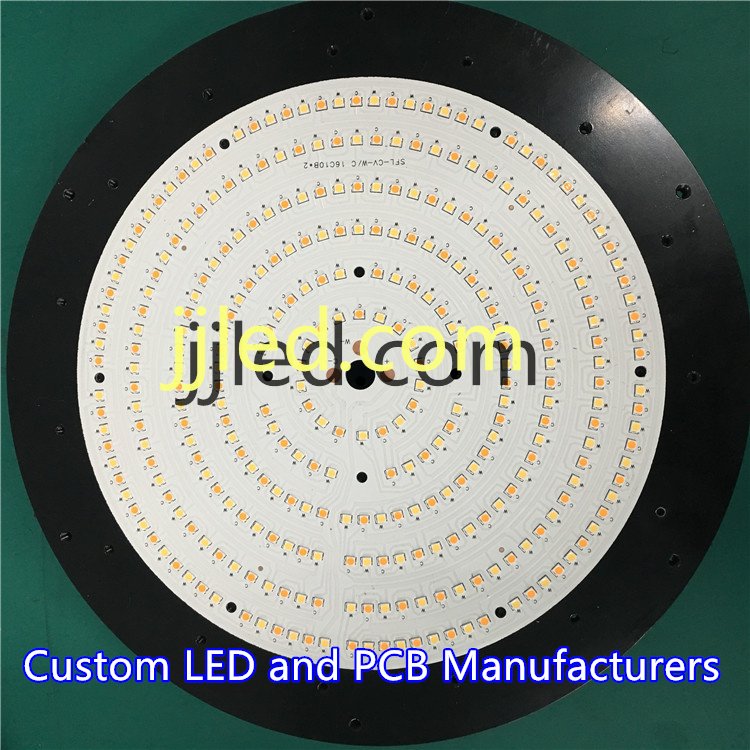

Applications of Round Aluminum LED PCBs

Round aluminum PCB LED boards are versatile and widely used across multiple lighting sectors thanks to their excellent thermal management and durability. Here are some common applications:

• Residential and Commercial Lighting: Ideal for bulbs, downlights, and ceiling fixtures where efficient heat dissipation improves LED lifespan and brightness.
• Industrial High Bay and UFO Lights: Perfect for high-power LED solutions that demand superior heat management in large spaces like warehouses and factories.
• Automotive Headlights and Signals: The robust aluminum base supports high-intensity LEDs, ensuring long-lasting, reliable performance in challenging environments.
• Outdoor and Specialty Fixtures: Spotlights, floodlights, and other weather-resistant fixtures benefit from the sturdy, corrosion-resistant properties of round aluminum LED PCBs.
• Emerging Uses in Horticulture and Medical Lighting: Custom round aluminum PCBs enable precision lighting with optimal thermal control, crucial for plant growth and medical applications requiring stable, high-CRI illumination.

Choosing a custom round LED PCB supplier can help tailor these applications to specific power needs and design sizes, ensuring the best fit for your lighting projects. For more on specialized LED lighting options, check out our insights on high CRI lighting benefits.

Choosing a Reliable Manufacturer and Supplier

When selecting a manufacturer for your round aluminum PCB LED projects, focus on these essential factors:

Partnering with specialized suppliers like Custom Round Aluminum PCB LED manufacturers brings clear benefits:

• Expertise in circular aluminum base LED boards optimizes thermal management and layout.
• Seamless customization from your design files to production means your project gets delivered precisely.
• Access to various copper thickness, surface finishes, and LED compatibility options (SMD 5730, COB, etc.).

For a smooth customization process, manufacturers typically follow these steps:

1. Review and optimize your design files.
2. Select appropriate materials and thermal layers.
3. Prototype and test for LED performance.
4. Scale production based on quality and reliability.

Choosing the right supplier ensures your round aluminum LED PCBs meet high standards for both performance and durability. Explore trusted providers to get the ideal balance of design flexibility and manufacturing precision.

You can check out detailed examples of high-quality LED modules and PCBs on our LED module PCB page for reference.

Manufacturing Process Overview

The manufacturing of round aluminum PCB LED boards involves several precise steps to ensure top thermal management and durability. It starts with material selection, where high-quality aluminum bases are chosen for their excellent heat dissipation. Next, a dielectric layer is applied to electrically isolate the copper circuit from the aluminum while maintaining thermal conductivity.

The process moves on to layering, where copper foil is laminated onto the dielectric layer. Then, etching defines the circuit patterns needed for the LEDs, creating clean and accurate pathways for electrical flow. After etching, precise drilling is carried out to make vias or mounting holes essential for component placement and heat sinking.

The final stage is finishing, which may include surface treatments like HASL or ENIG to improve solderability and corrosion resistance. Throughout the process, strict quality control checks ensure the PCB’s thermal performance meets standards, preventing hotspots and ensuring the reliability of high-power round aluminum LED PCBs.

For a deeper dive into the production details of LED PCBs, check out this overview of how LED PCBs are manufactured. This helps highlight the importance of each step in getting a high-quality aluminum base LED board ready for use in demanding lighting applications.

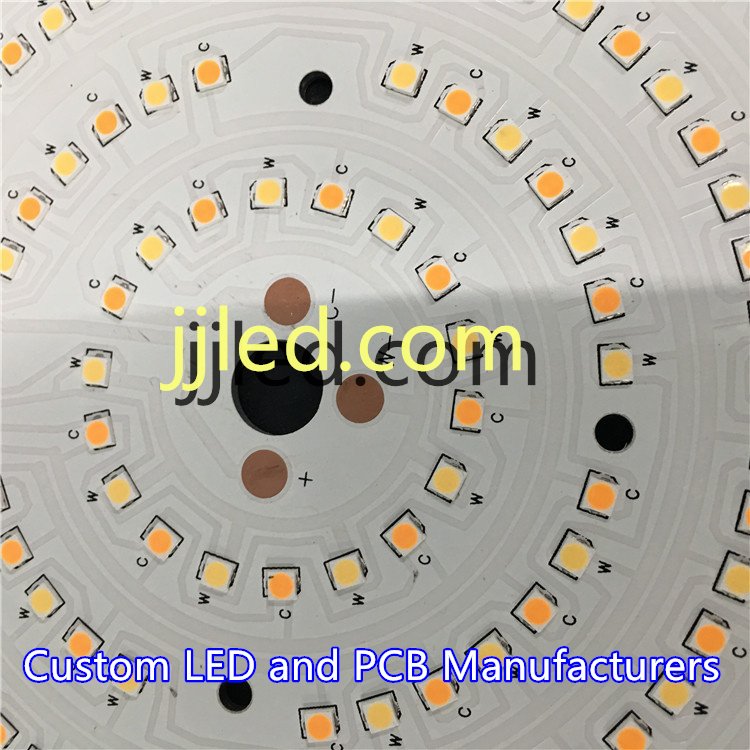

Tips for Designing and Implementing Round Aluminum LED PCBs

When designing a round aluminum PCB for LEDs, a few key practices can make all the difference in performance and durability:

• Optimize LED placement: Position LEDs evenly around the board to ensure uniform light distribution and avoid hotspots that degrade lifespan.
• Plan your layout with thermal management in mind: Use the aluminum base effectively as a heat sink by spacing heat-generating components to improve cooling.
• Integrate heatsinks where possible: Even though aluminum boards aid heat dissipation, adding external heatsinks or thermal pads can enhance heat flow for high-power LED modules.
• Choose the right copper thickness and surface finish to handle your LED’s power requirements and soldering needs.

Common pitfalls to avoid include uneven heat distribution—crowding LEDs in one area can cause premature failure—and neglecting proper electrical isolation between the copper layers and the aluminum base.

When moving from design to prototype and full production, consider the following:

• Request prototypes early to test thermal and electrical performance in real-world conditions.
• Partner with a supplier experienced in custom round aluminum PCB LED production to handle design files smoothly and scale up without delay.
• Double-check specifications like diameter size, dielectric layer thickness, and compatibility with your chosen SMD or COB LED components before final manufacturing.

For designing LED modules, exploring compatible options like the 2835 SMD LED chip can also help you tailor your lighting solution precisely.

Following these steps ensures your round aluminum LED PCBs deliver consistent performance, longer lifespan, and efficient heat management for your lighting projects.

FAQs About Round Aluminum PCB LED

Can round aluminum PCBs be multilayer?

Yes, although most round aluminum LED PCBs are single-layer due to thermal management needs, multilayer options exist for more complex circuits. However, multilayers may slightly reduce heat dissipation compared to single-layer metal core PCBs.

What is the minimum order for custom round aluminum PCB LED designs?

Minimum order quantities vary by manufacturer but typically start from 10 to 50 pieces, depending on board size and complexity. Working with specialized suppliers like a reliable round MCPCB manufacturer ensures flexible MOQ options and faster prototyping.

How does thermal conductivity affect LED performance?

Thermal conductivity is key to managing heat from high-power LEDs. Round aluminum PCB LEDs with aluminum bases conduct heat far better than FR4, reducing hotspots and boosting LED lifespan, brightness, and reliability.

Are round aluminum PCBs compatible with common LED types?

Yes, they support a wide range of LEDs including SMD 5730, COB LEDs, and other high-power modules, making them versatile for various lighting applications.

Can I customize the size and shape of the round aluminum PCB for LEDs?

Absolutely. Many manufacturers offer custom round LED PCB solutions tailored to your diameter needs, copper thickness, and surface finish preferences.

If you’re curious about thermal management techniques and how different dimmers affect LED longevity, check out our detailed guide on PWM LED dimmer vs constant current dimmer for LED lights. It’s a helpful resource to optimize your LED lighting setup using round aluminum PCBs.
